36m of the tower is up

Posted by on August 24, 2014 Comments Off on 36m of the tower is up

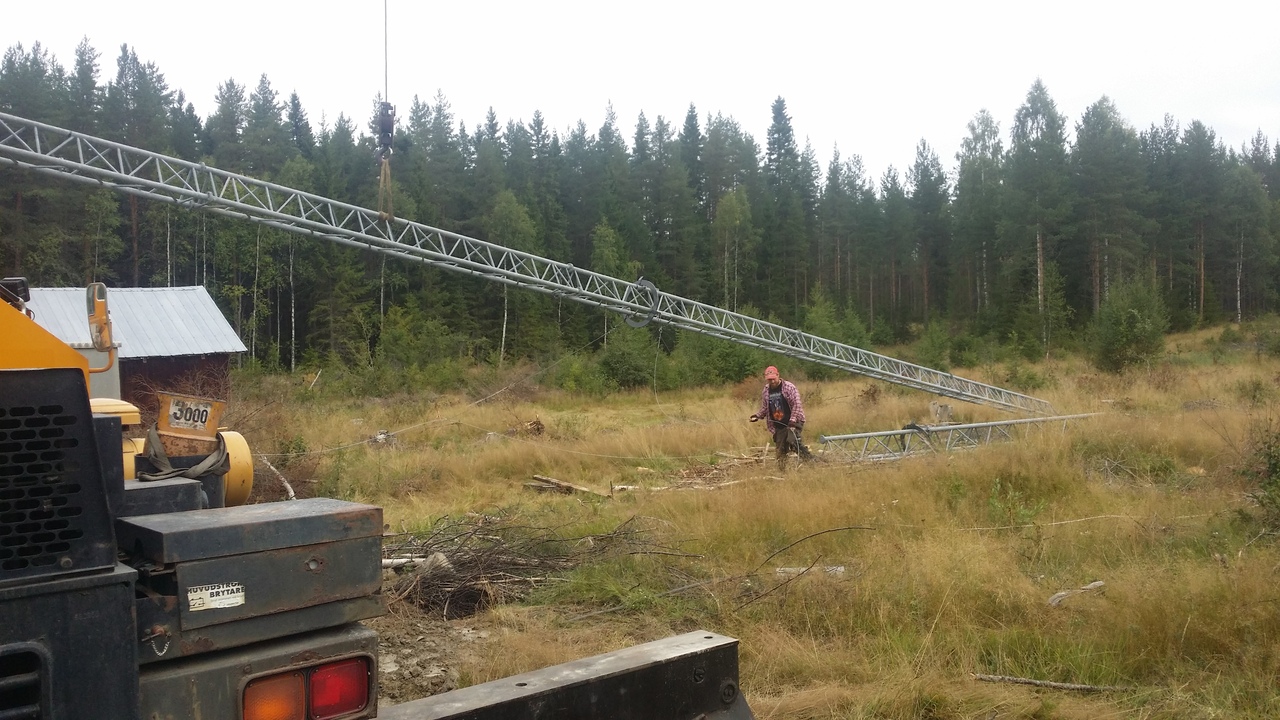

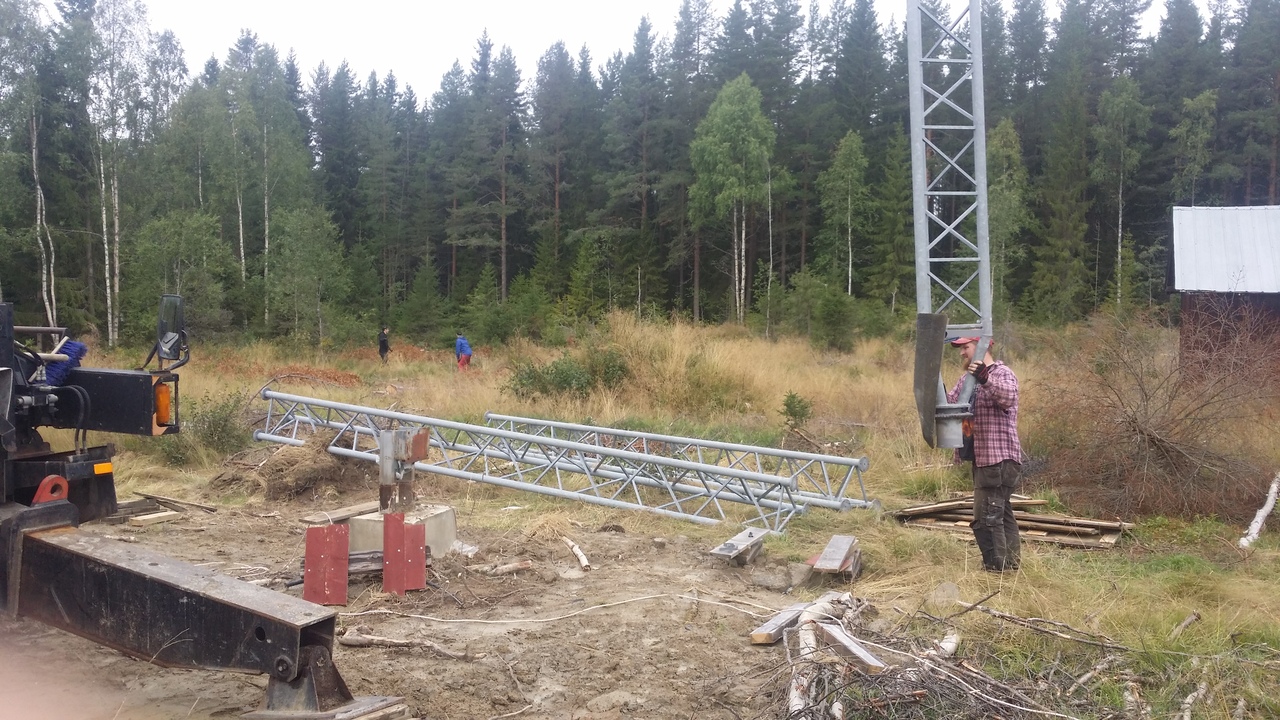

This weekend we had planned to lift the first 36m of the 60m high Moskojärvi tower. It all went great and as usual “GTL-Tobbe” did the job great with the small village crane. It was fun to have the new local hams with us for the first time during a tower lift, SA2CHQ and SA2CLC who live very close to SJ2W. SM2XLL also brought his friend Ulrik who was a big asset as well. I got a ride with SM2UVU who had been up in Kiruna for work and when we arrived at SJ2W Pelle, SM2LIY was already there. So we were a good bunch of people helping out and it just took one hour from when the crane came until we were done. During coffee afterwards SM2NOG showed up since he had gotten the idea we were going to lift the tower at 11 and not 9 🙂 SM2XJP also came by but by then the coffee pot was empty, however he got some nice burgers instead from chef SM2UVU.

We also discovered some issues with the 40m 4-SQ where the cable had been severely messed up by the forest machines a couple of years ago but we didn’t see it until now. I will need to replace parts of the cable. We also got problems again with the 7/8″ cable we had problems before last winter with ice in the connector and I guess there might still be water in the cable. So me and SM2XJP pulled through two new 7/8″ cables, one for the 5/5el 20m stack and the other for the soon to be 15m stack in the Moskojärvi tower.

I will try to book a bigger crane for next weekend so we can get the last of the tower up so it will reach its full height of 60m. SM2LIY took all the pictures and I also had a GoPro camera that did a time lapse of the work which can be seen below.

small_20140823_090435
small_20140823_090822
small_20140823_090904
small_20140823_090930
small_20140823_090944
small_20140823_091004
small_20140823_091015
small_20140823_091024
small_20140823_091125
small_20140823_091135
small_20140823_091030
small_20140823_091052
small_20140823_091145
small_20140823_091152
small_20140823_091224
small_20140823_091300
small_20140823_091313
small_20140823_091323
small_20140823_091350
small_20140823_091400
small_20140823_091410
small_20140823_091420
small_20140823_091434
small_20140823_091446
small_20140823_091457
small_20140823_091458
small_20140823_091512
small_20140823_091517
small_20140823_091524
small_20140823_091536

[Show as slideshow]
1 2 3

Preparations

Posted by on August 24, 2014 1 comment

Last week I did some preparations so we could hopefully lift the first 36m of the 60m tower the weekend after. Everything went great but it was a bit hard to lay out the tower sections by myself but I managed. On Sunday all the sections were bolted together and the guy wire lines were in place and we could head north again to do another week of work.

I also made some drilling templates for 25 and 20mm tubing. I will use these to drill the holes in all aluminum tubes so that they fit together properly and is quick to build. I will try to get them heat treated so they don’t get “eaten” up by the drill too fast.

small_20140810_171334
small_20140810_172714
small_20140810_173008
small_20140811_153048
small_20140811_153932
small_20140811_153941
small_20140816_110950
small_20140816_183543
small_20140816_183554
small_20140816_193112
small_20140817_104005
small_20140817_104014
small_20140817_104426
small_20140817_115822
small_20140817_140332
small_20140817_140409
small_20140817_140456
small_20140817_140459
small_20140819_171155
small_20140819_173513
small_20140820_153850
small_20140821_133729
small_20140821_140025

[Show as slideshow]

Pouring concrete part 2

Posted by on August 8, 2014 Comments Off on Pouring concrete part 2

SM2XJP went down with the tower section me and SM2UVU fixed to get it galvanized. A company Gallac in Skellefteå who has got a big factory said no to the job. So I called a company called Galvpart in Vännäs who are a lot smaller but they accepted the job for a very fair price. The problem is that they need to remove all zink from the old section before they can put it into one of the bath needed before the actual galvanization. However Gallac said they did not have a big enough room for the 6m section since their bath is only 5m long. However Galvpart have an even smaller bath which is 2m long but they managed to fix it anyway 🙂 By Thursday they had it done so SM2XJP went the 250km roundtrip today and picked up the parts.

SM2LIY helped me previously this week to pour the concrete for the pillar. It contains about 600l of concrete so it was very nice having Per getting water when we ran out of it and also “stomping” the concrete to get rid of air. He did an excellent job so the foundation turned out great.

We got to borrow the L70 from GTL (local company) which SM2XJP drove and fixed the ground around the foundation. He also did change the angles a bit around the military towers foundation since water was gathering around the foundation instead of pouring away. We also got rid of all old insulation material from the house which was great and the tower sections were moved into place so we don’t need to carry them so far.

small_20140804_133934
small_20140804_160631
small_20140804_160643
small_20140804_160654
small_20140804_160712
small_20140804_160849
small_20140805_183455
small_20140805_213234
small_20140805_213243
small_20140806_180330
small_20140806_183054
small_20140807_163635
small_20140807_170705
small_20140807_173854
small_20140807_182816
small_20140807_184800
small_20140808_140920
small_20140808_140927
small_20140808_141149
small_20140808_141213

[Show as slideshow]

Pouring concrete

Posted by on August 8, 2014 Comments Off on Pouring concrete

SM2LIY joined me at the station and helped out with some work. He also ran the EU HFC but unfortunately 10 and 15m was very poor up here so he had no chance against the rest of Europe. Better luck next year hopefully.

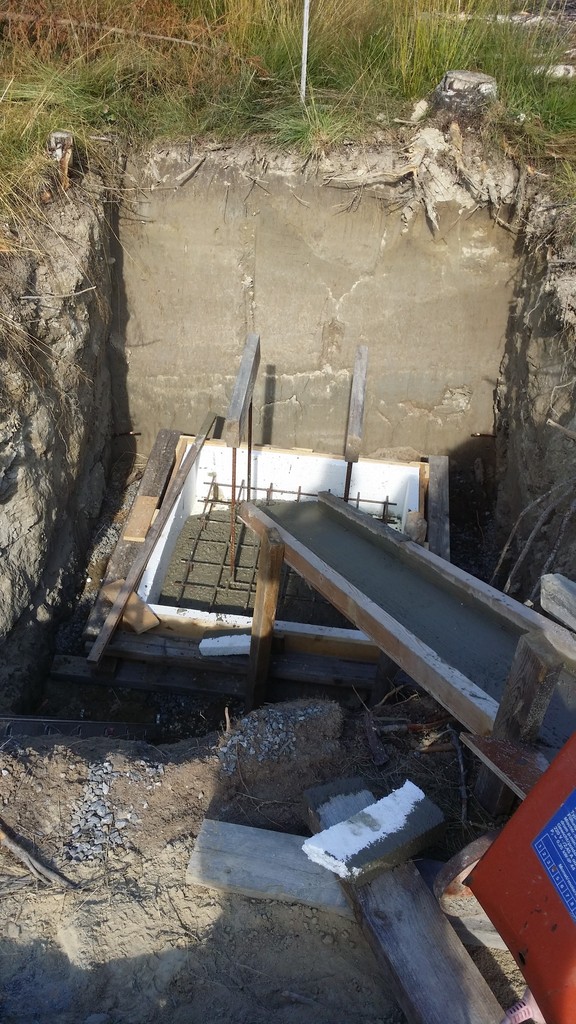

Otherwise I poured the concrete for the “base plate” for the 60m tower. It was very warm, around 28C so it was a real pain but luckily everything went smoothly and keeping the concrete a bit cooler down in the bottom of the hole was not a problem. SM2LIY helped me to build the form for the pillar and also a ramp so we could tip the concrete down into the pillar. SM2XJP came and helped to put the form together down in the pit and we were ready to mix concrete.
